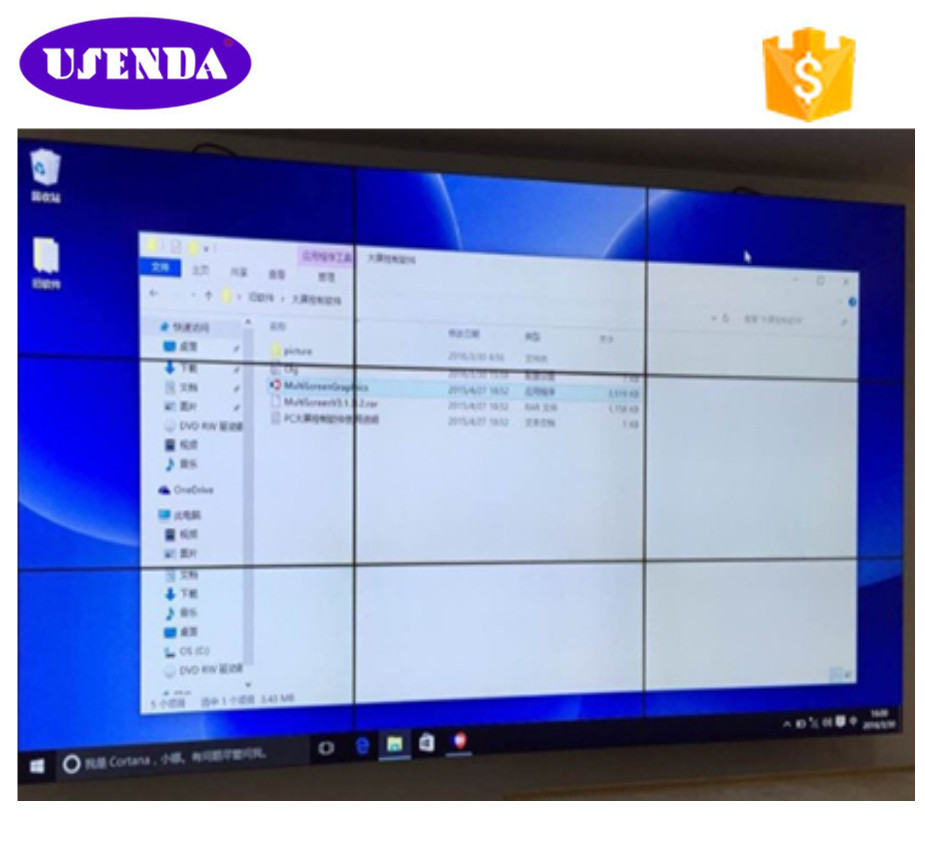

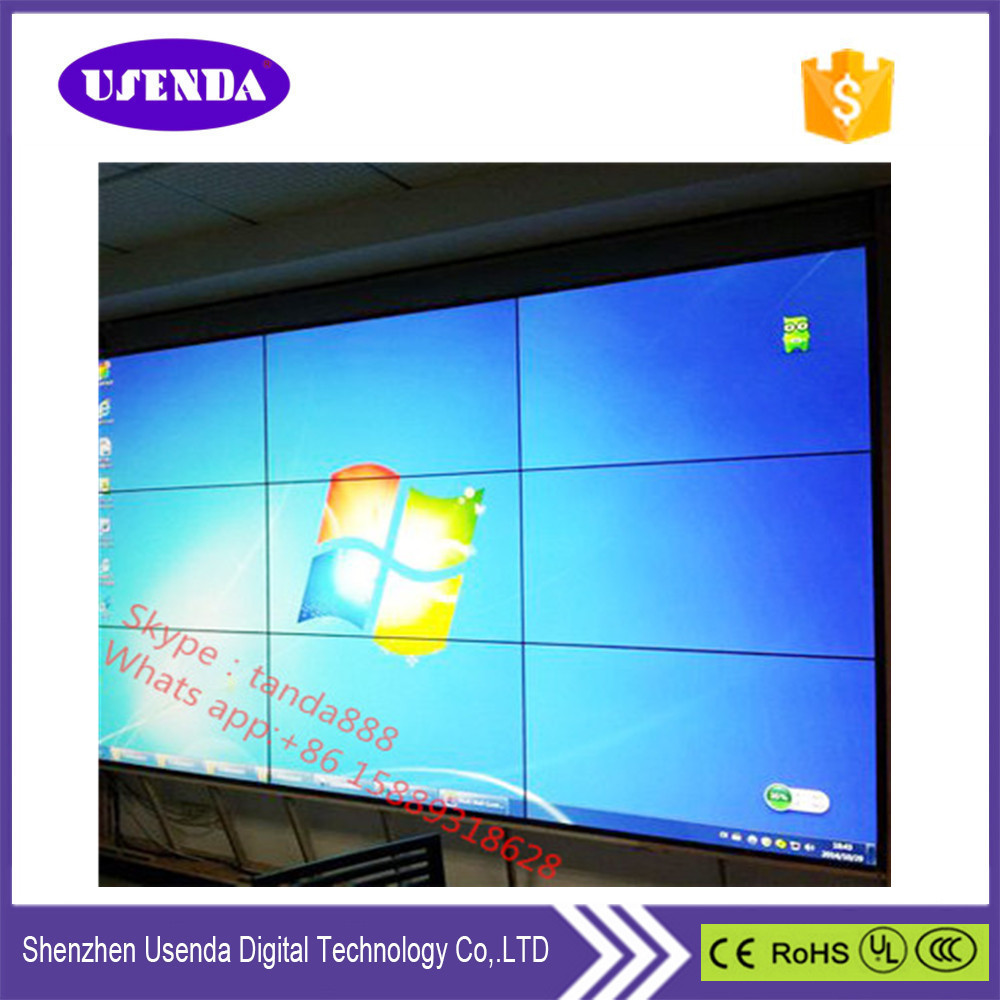

46inch 3.5mm super narrow bezel video wall solution Model：UD-PJ460CZB01
Parameter :
项目内容
Products Detail
1) Samsung unique DID LCD screen, can be placed horizontally, it can also be placed lengthwise;
2) Professional design, suitable for a variety of ways to install, metal shielding mechanism to prevent external electromagnetic interference;
3) LED-backlit display technology, 4000: 1 high contrast, sharp images, no radiation;
4) the need for an external splitter unique stitching technology, progressive input signals can be accurate to split control a pixel;
5) Integrated 3D Decoder, 2Scaler, 8bit digital signal input and output support to the operation control flexibility;
6) Long life, stable operation, no burns, injuries, low maintenance costs;
7) Various input and output interfaces, VGA, DVI, HDMI, AV interface terminals can be accessed by computers and video equipment;
8) The installation of intelligent temperature control system, dual fan design to ensure the internal temperature control in less than 55 degrees, safe and reliable;
9) Simplified Chinese, Traditional Chinese, English and other countries language menu operating system, user-friendly man-machine interface;
10) added support scrolling on the screen subtitles, support for real-time monitoring equipment operating conditions and failure analysis.
Technical parameters:
Model
Samsung 46-inch LCD splicing screen Nanor Machine Model: UD-PJ460CZB01
original panel Model: LTI460HM03
1021.9 * 576.5 * 100 (the whole thickness of 100mm)
original panel Model: LTI460HM03
1021.9 * 576.5 * 100 (the whole thickness of 100mm)
Image Aspect Ratio
16:09
Bilateral physical patchwork
3.5mm
Best resolution
1920x1080 / 3840x2160
Compatible Resolution
1920x1080; 1600x1200; 1366X768; 1280x1024; 1280x768; 1024x768
Pitch
1.53 (H) × 0.53 (V)
Response time
6ms
Color
8 bit, 16.7m
Brightness
500/700cd / m
Contrast
4000: 1
Color Temperature
10000K
Viewing angle (H / V)
178/178 degrees
Backlight
WLED backlight
Power supply
AC 100V ~ 240V, 50 / 60Hz, Universal, ± 10%
Power
130W (normal operation)
Life
60,000 hours
Total Weight
21Kg
Signal Interface
AV VGA DVI HDMI SDI DP YPbPr USB
Temperature
Working condition 0 ~ 50 ℃ -20 ~ 70 ℃ storage status
Standard accessories
Power line
Optional accessories
Rackmount, wall, floor
